A 1D Systolic FIR
Introduction
This section describes how to build a one dimensional
(1D) systolic filter in Lava. First we present the design of the
processing element of the systolic array. Then we show how this
processing element can be replicated to form a filter. Note that
there are many ways of designing such filters and this technique is
not the best possible implementation on Xilinx's FPGA architectures.
This example has been chosen to help illustrate how to describe
systolic-style systems in Lava.
NOTE: The filter implementations presented here
are designed to illustrate aspects of Lava and are not the
recommended implementations for Xilinx's FPGAs. Xilinx's Core
Generator contains several optimized filter implementations.
Finite Impulse Response Filters
The filter we shall build is called a finite impulse
response filter (FIR) digital filter which calculate the weighted
sum of the current and past inputs. FIR filters are also known as
transversal filters or as a tapped delay line. The behavior of the
finite impulse response filter can be described by the equation:

where yt denotes the output at time t and xt
represents the input at time t and
ak are the
filter coefficients We shall use an "inner product" processing
element to perform a single multiplication and addition and then
replicate this processing element to make a circuit that compute the
filtering function. We shall assume at the coefficients are
constants which will allow us to use constant coefficient
multipliers in our implementation.
We can model a finite impulse response filter in
Haskell (the host language of Lava) with the following code. semisystolicFIR weights xvals [] = []
semisystolicFIR weights xvals (xin:xrest)
= sum [w * x | (w,x) <- zip weights xvals] : semisystolicFIR weights (xin : init xvals) xrest
This function takes three arguments:
- a list of weight values (weights)
- a list of the x-values at each tap of the filter (xvals)
- a list of input samples where the first sample value is called
xin and the remainder are called xrest
If the input stream is empty i.e. the empty list [] then this
function returns the empty list. If the input stream is non-empty
then the first value in the input list is bound to xin and the
remainder of the list is bound to xrest. The xvals are paired for
multiplication up with their corresponding weight values by using
the zip list processing function (for matching up elements pair-wise
across two lists). The products are added to yield the filter result
for this tick. This result is then followed by a list that
corresponds to the remainder of the input stream (xrest) being
recursively processed by the same function. However, we have to
shift along the xvals so the xin value appears at the first tap. The
expression (init xvals) returns the original xvals list with the
last element removed. This allows us the express the "shifting in"
of the new x value with the expression xin : init xvals.
Although the semisystolicFIR function does not correspond to a
Lava circuit it can be used to simulate a filter. For example,
assuming we have an input stream which corresponds to sine wave
(scaled by 127) we can calculate the result of applying a finite
impulse response filter with weights1 =[3, 9, 15, 7, 5]. Here is the
results of performing such a simulation at the prompt of the ghci
Haskell interpreter (looking at only the first 10 values of the
input and output).
Systolic1DFir> take 10 sineValues
[0,9,18,26,35,43,52,60,67,75] Systolic1DFir> take 10
(semisystolicFIR weights1 [0,0,0,0,0] sineValues)
[0,0,27,135,375,672,1005,1340,1668,1997] Systolic1DFir>
As a final step a filtering function may divide the output by the
sum of the coefficients which will scale the output signal back into
the range of the input signal (this is note done by this
implementation). Choosing coefficients that have sum which is a
power of two make it easy to perform such scaling since this
corresponds to throwing allow some of the low order bits.
A Semi-Systolic Filter
First we describe a semi-systolic filter. In a
systolic design all the wires between processing elements have at
least one latch and all the latches have the same clock signal. In a
semi-systolic design this constraint is relaxed to allow wires
between processing elements which do not have any latches.
The inner product processing element will take as
inputs an accumulated sum from previous processing elements (yin), a filter coefficient (ai) and a sample value from the input stream
(xin) and return two values: the xin is passed to xout and the yout is computed by performing
the inner product calculation and adding it to the accumulated sum

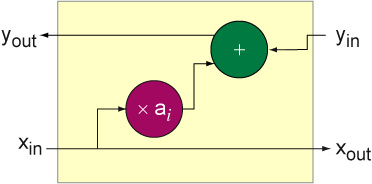

i.e. yout = yin + ai * xin. An implementation for an inner product
processor is shown below where the purple circle denotes a constant
coefficient multiplication by the value ai and the green circle denotes an adder. The
input x values are passed from left to right and the accumulated
sums as passed right right to left.

To make a complete filter we need a way of sequencing
the x values one at a time through each processing element. This can
be accomplished by placing a register at the xin input of the inner product processing
giving the following processing element:

A semi-systolic filter can now be made by
composing several comprises of this processing element. We need one
processing element for each tap in the filter so a four tap filter
would like look:

This is a semi-systolic filter because
although there are registers on the wires carrying the x values
there are no registers on the wires that carry the accumulated sum.
The critical path of this circuit goes through four processing
elements which makes this a poor implementation choice.
The Lava description of this filter can be
used to generate VHDL for simulation and EDIF for implementation

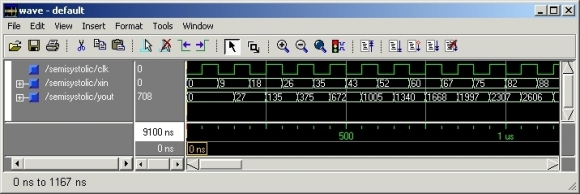

using Xilinx's place and route tools. The VHDL simulation shows that
the filter behaves as expected:

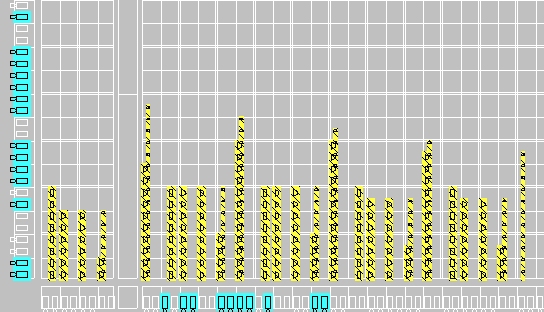

The layout of this filter is shown below
implemented in the corner of a Virtex-II FPGA (an XC2V1000-FF896
with speed grade 6).

This adders grow taller in a left to right
direction as the accumulated sum gets larger. This implementation
has a maximum combinational delay of 14.527ns (as reported by the
place and route tools) which gives a maximum frequency of 68.8MHz
and has 14 logic levels. This implementation uses 119 slices. This
layout can be compacted by overlapping some of the pipeline
registers with the result of the KCM calculation which also results
in a faster implementation.
A better filter can be made by transforming
this semi-systolic filter into a systolic filter by the systematic
application of three techniques: retiming, slowdown and hold-up.
The Processing Element

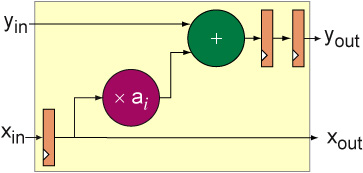

The processing element of the 1D systolic FIR is shown
below. Both the x values and the accumulated results flow from left
to right. Registers are added at the inputs and outputs for
pipelining in a way that makes sure the accumulated sums and x
values stay in synch.

This circuit can be specified by the Lava
code below which makes use of a KCM and an adder that were presented
earlier. holdupPE clk k
= fsT (registerAndMultiply clk k) >->
reorg >->
snD ((flexibleUnsignedAdder >|> vreg clk) >-> vreg clk)
where
reorg ((a,b),c) = (a,(b,c))
A 4-tap Filter
An example of a four tap filter using this processing element is
shown below:

This is formed by simply replicating the processing element
horizontally. The x input has to be delayed by one clock tick to
synchronize with the y inputs. When this filter is implemented by
the Xilinx place and route tools the last two registers on the x
path are automatically pruned as is the unused xout signal. The Lava code for this filter is
shown below. holdupFilter :: [Int] -> Bit -> [Bit] -> [Bit]
holdupFilter weights clk xin
= yout
where
(xout, yout) = hser [holdupPE clk k | k <- reverse weights])
(xin, replicate (length xin) gnd)
This filter has a much higher latency (8 ticks) than the
semi-systolic filter:

However, since the longest combinational path between any two
registers goes through just one processing element. The place and
route tools report a maximum clock period of 6.687ns which allows
this filter to be run at 150MHz.
A more compact but slower filter can be made by realizing the
multiple register stages with SRL16 components (shift registers
implemented in LUTs which can shift by up to 16 stages).
A better implementation can be produced by transforming the
semi-systolic implementation into a systolic implementation by the
systematic application of three techniques: retiming, slowdown and
hold-up.
Describing The Semi-Systolic Filter
Although the semi-systolic filter is not recommended for FPGA
implementation we reproduce the implementation and show how it can
be captured in Lava.

This architecture can not be directly described by the Lava
combinators introduced so far because there is both left to right
and right to left data-flow through each block. To help describe
such communication patterns we introduce a new combinator called
two-way serial and written as >< :

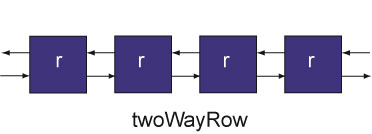

This combinator can then be used to describe a combinator called
twoWayRow for the serial composition of many
identical blocks that have two-way data-flow:

The definition of twoWayRow is:
twoWayRow = foldl1 (><)
This combinator can now be used directly to describe the
semi-systolic filter shown above.
